Small Pitch LED Display
The small pitch LED display excels in detail presentation, color reproduction, and energy efficiency, making it a highly favored choice in the market.
- High pixel density provides unparalleled clarity in the display
- Precise small-pitch technology ensures a seamless visual experience
- An intelligent control system makes operation more convenient
As one of the leading manufacturers of high-quality LED displays, you can confidently purchase fine pitch LED displays from Cailiang. We are committed to providing excellent after-sales service and timely delivery.
What is a small pitch LED display?
Small pitch LED displays are composed of a large number of LED pixels with a very small pixel pitch, typically ranging from 1mm to 2.5mm. Compared to traditional LED displays, Fine pitch LED displays offer higher pixel density, enabling them to deliver clearer and more detailed images and text. This makes them especially suitable for environments with high-performance display requirements, such as high-end conference rooms, control centers, shopping malls, sports venues, and more.
What are the features of small pitch LED display?

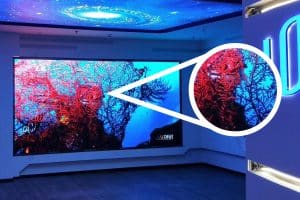

High Definition Display
The small pitch LED display offers an extremely high resolution, capable of presenting intricate and clear images and videos. Even when viewed up close, the screen remains free from pixelation, meeting the demands of high-precision displays.
Seamless Splicing
With a modular design, multiple screens can be seamlessly spliced together, achieving smooth transitions between images and avoiding the border interference commonly found with traditional LCD displays.

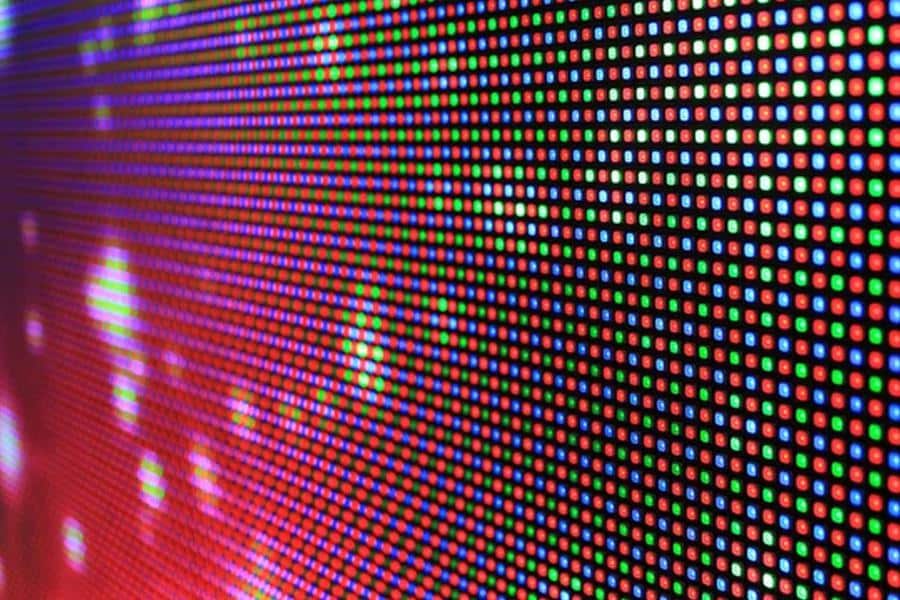

Color Performance
The display supports a wide color gamut and high color accuracy, delivering rich color gradients and vibrant visual effects.

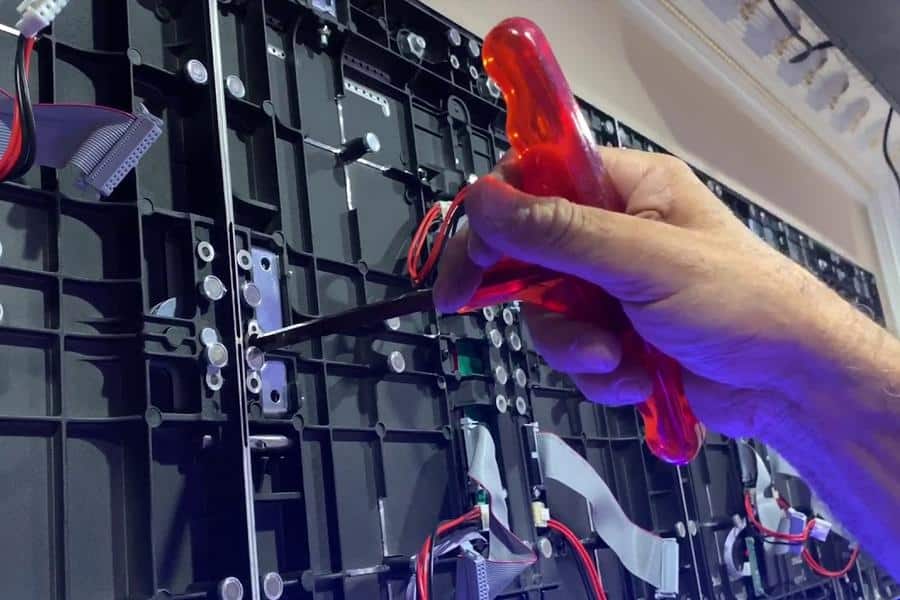

Stable Operation
Featuring high-quality LED chips and driving circuits, the display has strong anti-interference capabilities, ensuring stable performance with minimal risk of issues such as dead pixels or flickering.
Applications of small pitch LED displays
Due to their high resolution, brightness, and excellent color reproduction, small pitch LED displays are particularly well-suited for applications that require high image quality and display density.
- Advertising and Commercial Display
- Broadcasting and TV Studios
- Control Rooms and Monitoring Centers
- Conference and Event Displays
Small Pitch LED Display Module Technical Specifications
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 |
| Physical Pixel Pitch (mm) | 1.25 | 1.25 | 1.538 | 1.86 |
| Scanning Method | 32S | 64S | 52S | 43S |
| Interface Definition | HUB320 Double Input | HUB320 Double Input | HUB320/HUB75 Double Input | HUB75 Double Input |
| Unit Board Resolution (Dots) | 256×128 | 256×128 | 208×104 | 172×86 |
| Pixel Density (Dots/m²) | 640,000 | 640,000 | 422,500 | 288,906 |
| Brightness Range (cd/m²) | ≥550 | ≥550 | ≥550 | ≥550 |
| Module Weight (g) ±10 | 521 | 460 | 469 | 450 |
| Maximum Power Consumption (w/h) | ≥20 | ≥15 | ≥17.5 | ≥19 |
| Maximum Power Consumption per m² (w/m²) | ≤390.6 | ≤292.9 | ≤342 | ≤371.1 |
| Best Viewing Distance (m) | ≥1.3 | ≥1.3 | ≥1.6 | ≥1.9 |
| Number of Drive ICs (pcs) | 192 | 96 | 78 | 66 |
| Number of Row Chips (pcs) | 32 | 32 | 26 | 22 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Viewing Angle | Horizontal 160±10° Vertical 160±10° | Horizontal 160±10° Vertical 160±10° | Horizontal 150±10° Vertical 150±10° | Horizontal 140±10° Vertical 130±10° |
| Gray Level (Bit) | 13-14bits | 12-14bits | 13-14bits | 12-14bits |
Is small pitch LED display better than OLED?
With higher brightness and longer lifespans, small pitch LED displays are ideal for large screens, outdoor environments, and commercial spaces. They provide a stable display with vibrant colors, delivering a clear, bright visual experience across a variety of settings. In contrast, OLED displays offer higher contrast, more accurate colors, and deeper blacks, making them perfect for high-end display needs. However, they come at a higher cost and have a relatively shorter lifespan. Ultimately, the choice between these two technologies depends on the specific application and requirements.
Frequently Asked Questions
Yes, the brightness and contrast of most small-pitch LED displays can be adjusted through the control system to suit different usage scenarios and ambient lighting conditions.
Small-pitch LED displays are designed with energy efficiency in mind, and their power consumption depends on factors such as brightness and screen size.
To maintain and clean a fine pitch LED display, wipe the screen surface with a soft, dry cloth and avoid using chemical cleaners. Regularly check power and signal connections, and replace any faulty modules promptly.
